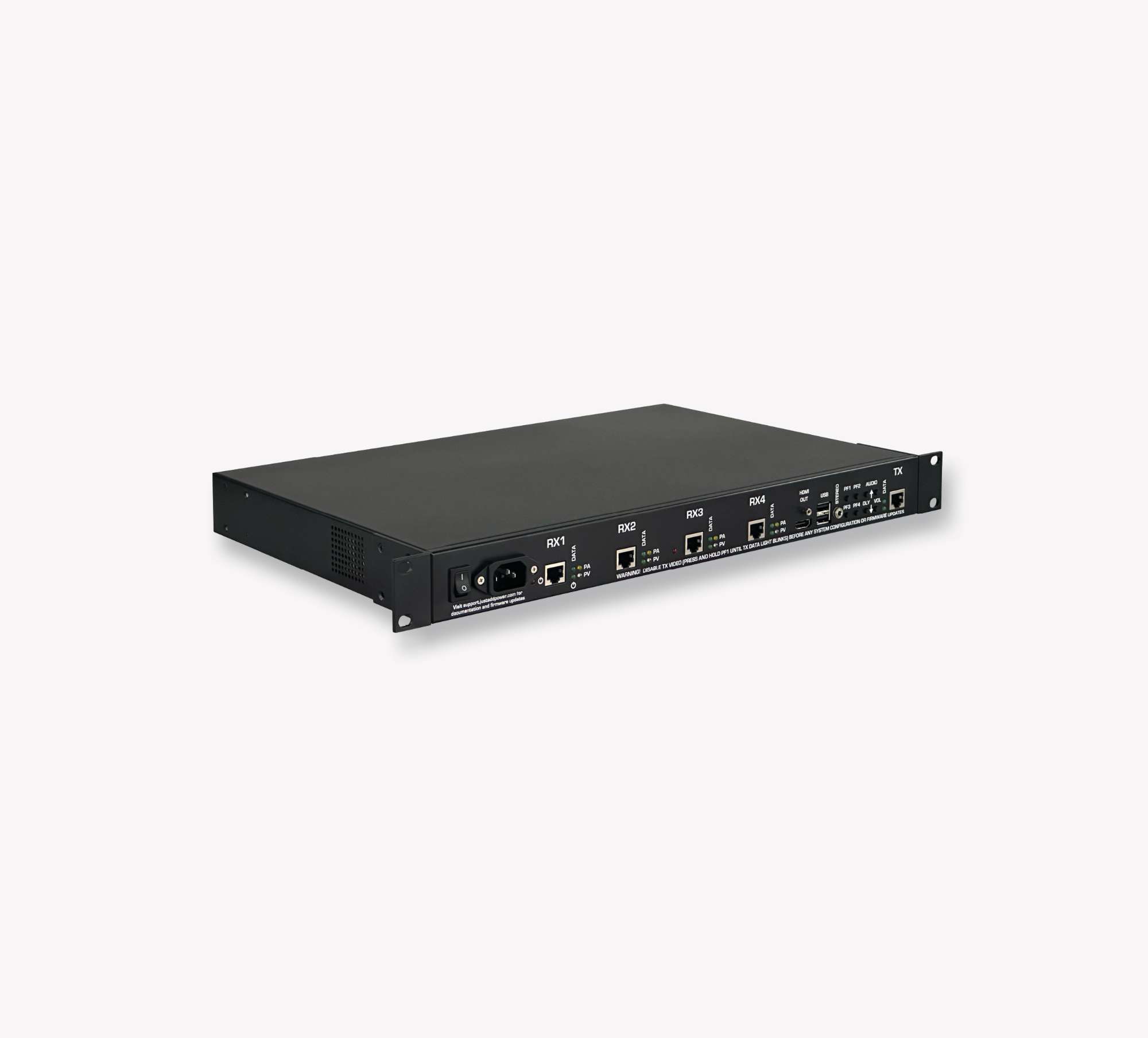

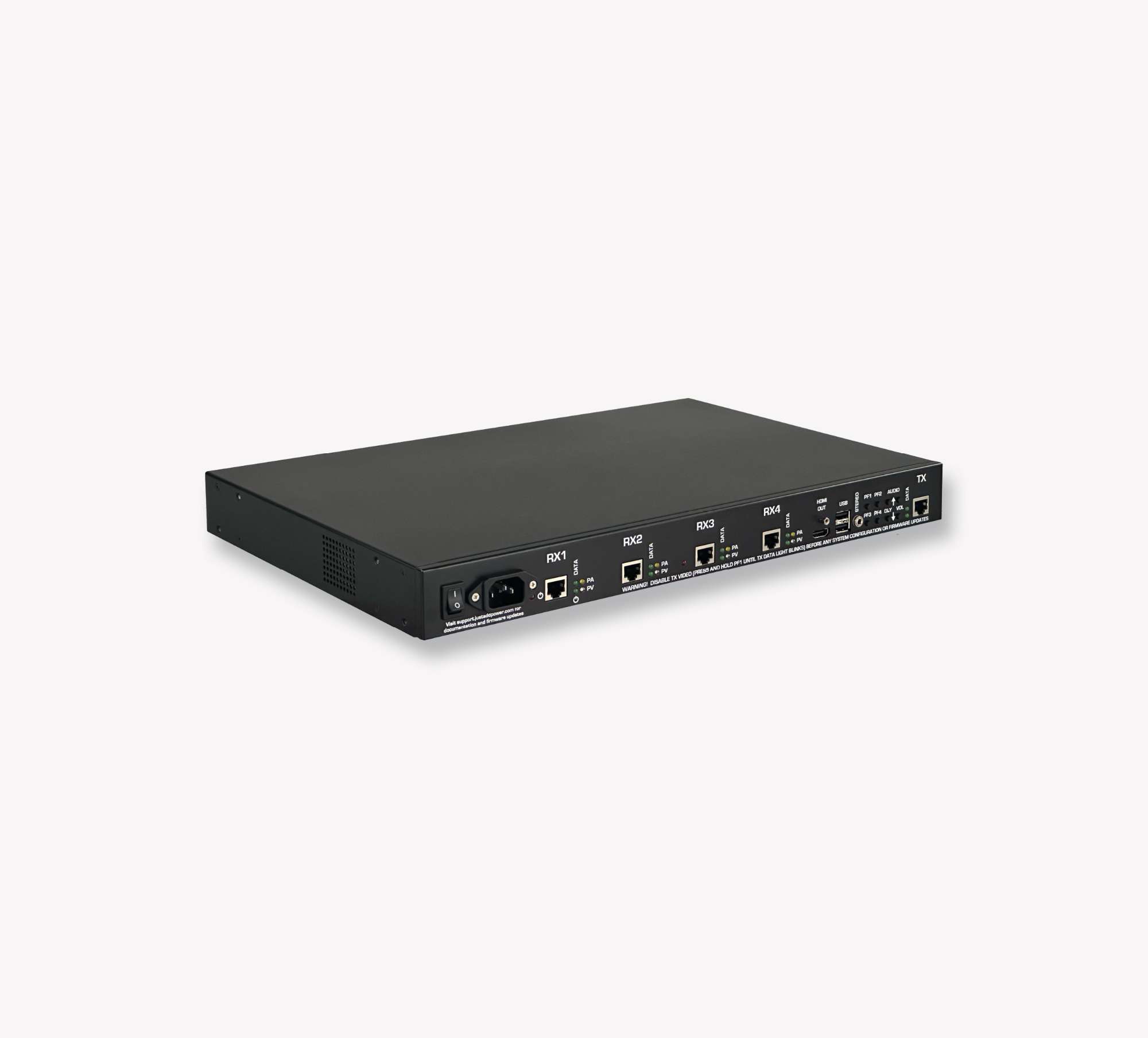

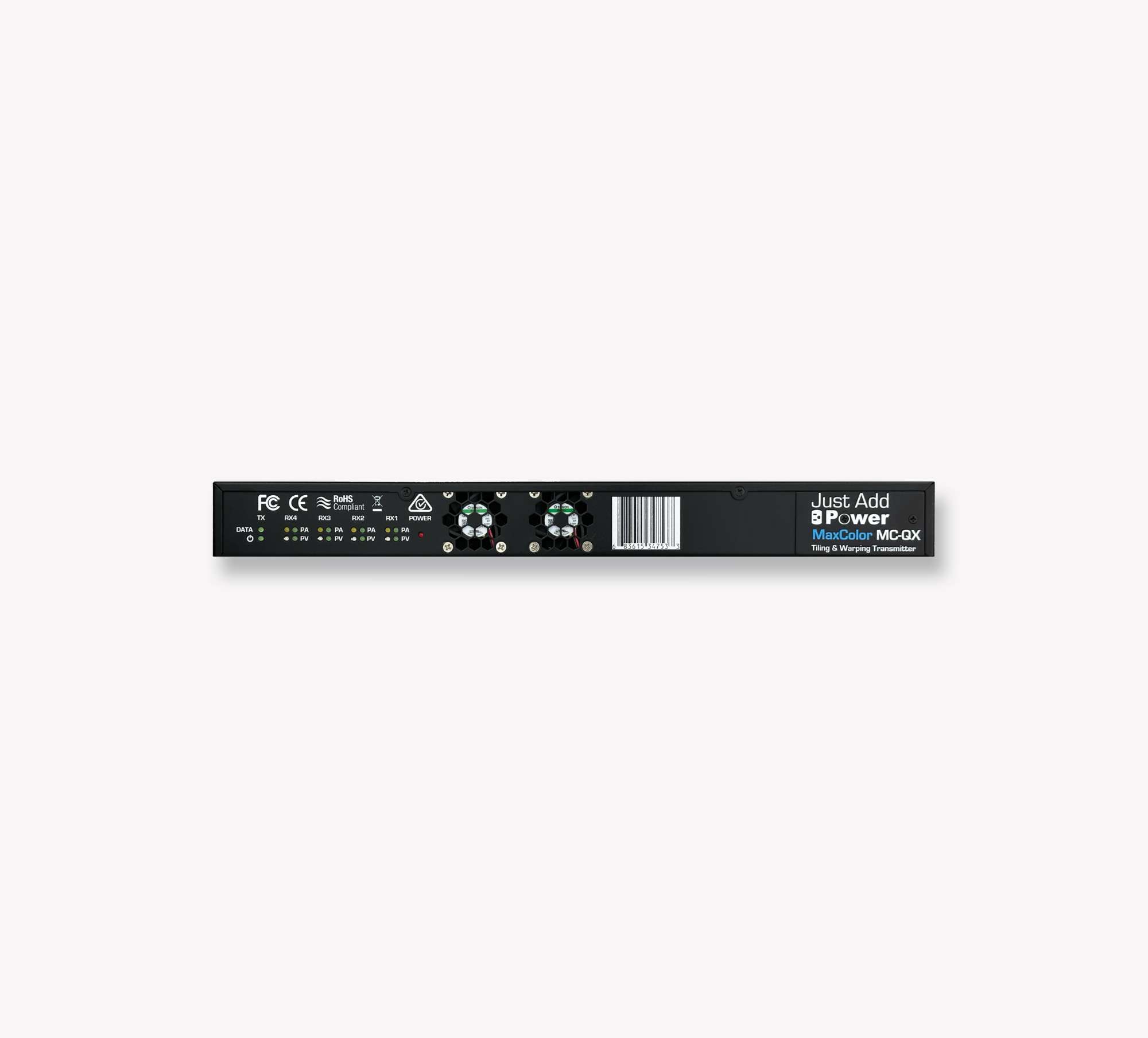

MC-QX
MaxColor Series
4K60 Encoder (Transmitter) with Video Tiling and 360° Video Rotation
Tiling Features
- Tiles up to four 4K60 or lower source devices on a single screen
- Variety of viewing modes
- Any Transmitter in the MaxColor system can be input to the Tiler
- Distribute Tiled video to any Decoder (Receiver) in the MaxColor system
- Additional Tilers allow for more sources on the same display
Warping Features
- Rotates a single 4K60 or lower source up to 360 degrees in real time
- Decoder (Receiver) and Encoder (Transmitter) combined into one unit
- Decoder (Receiver) accepts video from any Encoder (Transmitter) in the system
- Encoder (Transmitter) outputs rotated video to any Decoder (Receiver) in the system
Additional Features
- Supports all lossless audio formats
- Supports deep color up to 36-bit
- HDR10, HDR10+, HLG and Dolby Vision
- Display a custom logo or message as an overlay on any active screen
- Load a custom default image or logo for when no source is displayed onscreen
- Computer and video resolution 4K/60 @ 4:4:4
- 2 x USB 2.0 Type A ports

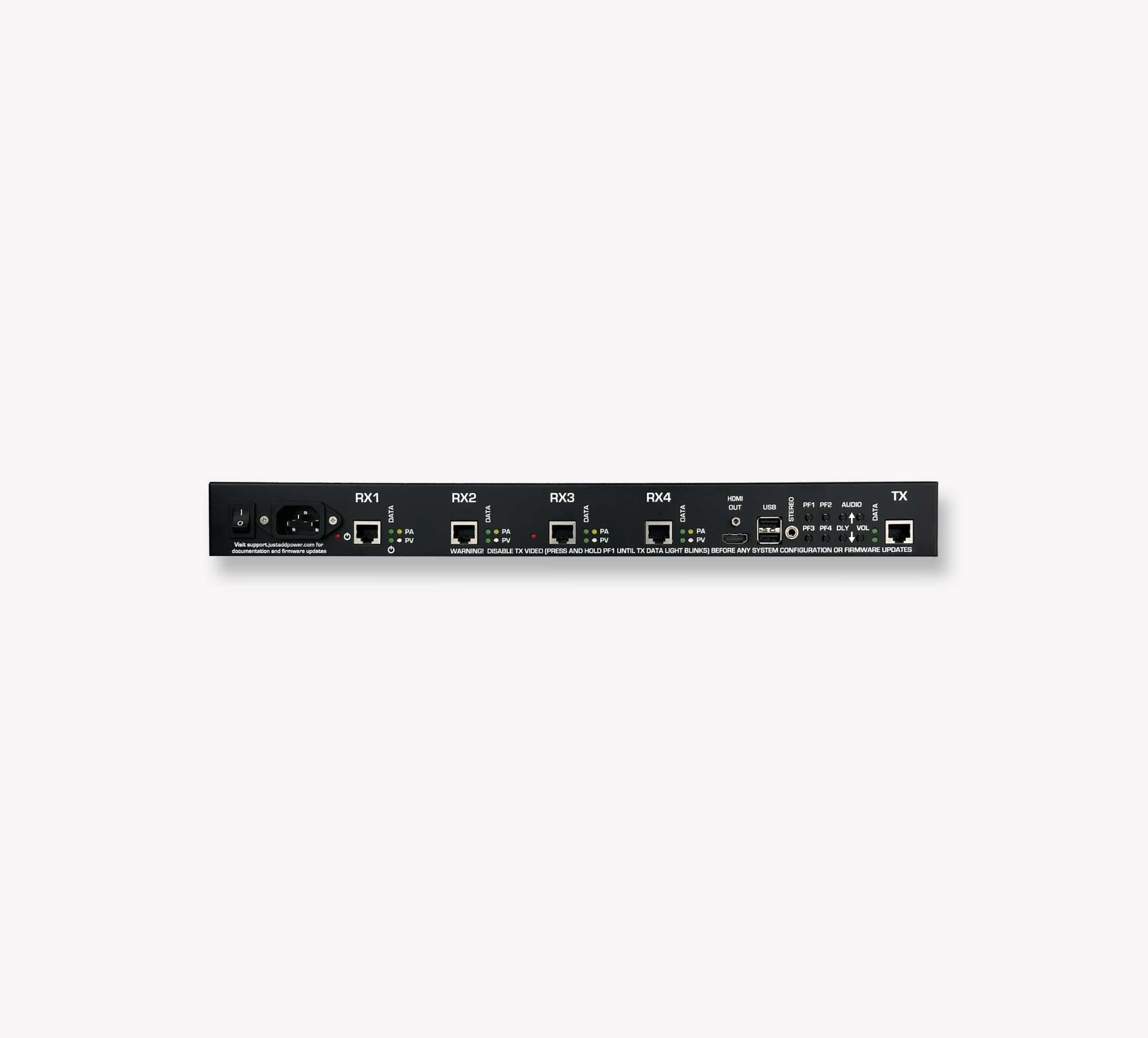

- 5 x 1Gb Cat ports (1 x Transmitter and 4 x Receivers)
- Local HDMI out
